Steel Structure Workshop & Warehouse Building

›

‹

  • Steel Structure Workshop & Warehouse Building
  • Steel Structure Workshop & Warehouse Building
  • Steel Structure Workshop & Warehouse Building
  • Steel Structure Workshop & Warehouse Building

›

Steel Structure Workshop & Warehouse Building

Our steel structure workshops and warehouses are engineered for efficient production, organized storage, and flexible industrial use. Featuring clear-span space, robust cross-braced framing, and built-in ventilation provisions, our prefabricated buildings deliver practical, expandable solutions that are easy to manage and precisely tailored to real project needs — backed by our comprehensive engineering support, manufacturing capability, and one-stop service system.
+86 18954513455
taisin@tssteelstructure.com
Contact us

Contact with Us For

Any Advice

Need help? Talk to an expert

+86 18954513455

Product Details

Industrial Steel Structures · Workshop & Warehouse

Steel Structure Workshop & Warehouse — One Building, Two Full-Time Jobs

A workshop runs production; a warehouse holds inventory — and most suppliers sell you one of them, then discover the other on site. We design the frame for both jobs from day one, because the differences are structural, not cosmetic.

Clear-Span 15–60 m
no columns in your way		Crane-Ready ≤30 t
runways framed into the columns		Rack-Ready Floors
we draw the slab loading map		Grows Bay-by-Bay
bolt on length, no shutdown

图33_第10页_泰信建筑科技公司简介


Two Jobs, Two Different Buildings — We Design for Both

What changes between workshop mode and warehouse mode isn't the signage. It's the structure:

Design questionAs a workshop…As a warehouse…How the frame answers
Height buys you…headroom for machines, cranes and ductingcube — every extra meter stacks one more rack leveleave height 6–12 m set by YOUR job; wind area re-checked when it changes
What the floor hatespress feet, forklift traffic lanes, oilrack legs: 100+ kN point loads, tight turn aislesa slab loading map issued WITH the steel drawings — the screed follows our plan, not guesswork
Air & heatfumes and process heat: ridge louvers, extract fansstratification: high-level vents + destratification fansopenings pre-framed in the design — cut panels are how warranty claims start
Doorspersonnel doors, machine bays, dust controldock levelers, drive-in doors, securityevery header sized and stiffened at design stage; mezzanine freight lifts sit inside the grid
The five-year flipline moves → half the floor is "just storage"e-commerce grows → you need a packing line insideone bolted frame serves both — conversion happens in panels and services, not demolition

Tell us the split in your first email — "60% production line, 40% racking" is a complete brief. The Tekla model tests both layouts before a beam is cut.

Plan the Fifth Year on Day One

Almost every workshop becomes a bigger workshop. The expansion cost is decided before the first concrete pour:

① End the braced frame where growth attaches. The bracing bay sits at the plot-boundary end, not mid-building — future bays bolt on like train carriages.② Anchor bolts for future columns, ordered now. A handful of bolts cast into fresh concrete is free; drilling cured slab later is dust, downtime and doubt.
③ Keep bay spacing standard. 6–9 m bays mean an added bay is a catalogue item — matched purlins, girts and cladding, no site measuring.④ Size gutters & downpipes for the final footprint. The cheapest time to upsize a drain is when it has not been installed yet.

These four decisions add ≈ nothing to day-one cost and remove the #1 reason expansions stop the plant for weeks.

7
dedicated steel fabrication lines		50,000 t/yr
capacity — your job is never in a queue behind a stranger's		100% BIM
PKPM · 3D3S · Tekla — design to delivery, one model

See Your Building Before It's Built — Our In-House 3D Designer

A real output from the parametric design tool our engineers run in-house: send dimensions, get the 3D model, a render of your actual building and a budget breakdown with an item-by-item BOQ — in minutes, not engineering weeks.

ScreenShot_2026-09-17_150518_725

Specification

图17_第10页_山东东正钢构有限公司企业简介2025


图19_第10页_山东东正钢构有限公司企业简介2025

ItemWorkshop & Warehouse Package
Structural systemWelded H-section portal frame or truss, all-bolted site assembly; Q235B/Q355B · A36/A572 · S235–S355
Size rangeClear span 15–60 m · length unlimited (bay-by-bay) · eave 6–12 m · bays 6–9 m
LiftingOverhead cranes to 30 t, monorails, jibs — runway beams and stops designed into the frame
Mezzanine2nd/3rd level at 5–10 kN/m²; stairs and freight lifts coordinated in the model
EnvelopeSingle corrugated up to EPS/rockwool/PU sandwich panels 50–150 mm; ridge vents, louvers, skylights, dock doors
Floor interfaceWe issue the slab loading map + column layout for racks & machines with the steel drawings
Loads & codesWind & snow per ASCE 7-22 / EN 1991 (site data) · AISC 360 / Eurocode 3 / AS 4100 · coating ISO 12944 & HDG ISO 1461 · ISO 9001
What shipsNumbered members, anchor bolts, erection drawings, seaworthy packing & container loading plan, remote erection guidance
Lead time25–45 days fabrication · T/T 30% deposit, 70% before shipment
Four answers, and we can draw both jobs:
1) production vs. storage split (%)  ·  2) racking or open floor — and the tallest thing you store  ·  3) crane now or later  ·  4) site city — layout options + tonnage + erection schedule back in 48 h.

TAISIN STEEL STRUCTURE CO., LTD.

At Your Service, 24 Hours a Day

Talk to a real engineer anytime — design & quote within 48 hours.

WhatsApp UsCall +86 159 1010 8677Email Us

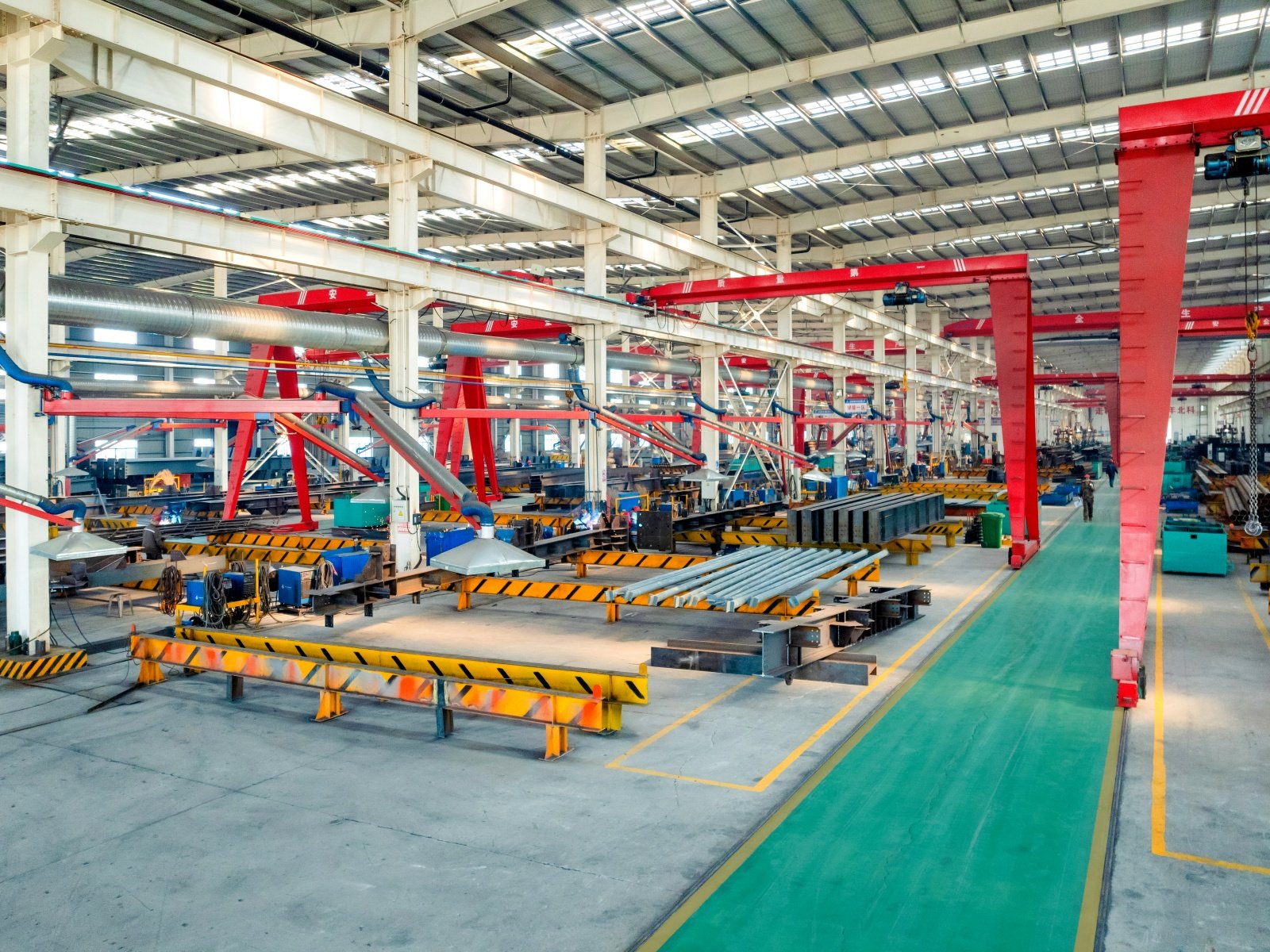

Factory Display

  • 05
  • 06
  • 07
  • 6
  • 5
  • 4
  • 3
  • 2
  • 1
  • 7

Packing & Delivery

  • H737982c83cbc4a3f8e6906b878ebb229N
  • H62e7887630294d119fc2199937396643A
  • Hb4dac970519247c98f0e8159444a0b864
  • Hb94675af5325432e9f41c1544074f61ce
  • H8abe21a2bf8c46cbb4ccc0681534a703a
  • H3b722173c2e34ddfa9ba14e9aabe26eaU

FAQ

Q：

What one-stop services and technical support can we provide for overseas steel structure projects?

A：
We cover the entire project chain—from drawing to delivery.
For overseas steel structure projects, our one-stop services include:
Design & engineering — structural optimization, detailing and drawing confirmation tailored to local codes and site conditions
Fabrication — precision manufacturing in ISO 9001-certified facilities, with strict quality inspection at every stage
Export packing & logistics — seaworthy packing, clear documentation and coordinated shipping for long-distance delivery
On-site support — installation guidance, bolted-assembly documentation and responsive technical consultation until your project is operational
Technical support runs throughout: we confirm design details before fabrication, align drawings with production, and stay available after delivery—so every unclear point is resolved before it becomes a problem on site.
Q：

Why choose us rather than other suppliers?

A：
Because we solve the problem most suppliers ignore—the gap between what is promised and what is delivered.
We are built for overseas projects. Remote ordering, long-distance shipping and on-site assembly are our normal working mode—not exceptions we improvise around.
Engineering comes before fabrication. We confirm loads, layout, lifting logic and interfaces in the design stage, so problems are solved on paper, not after materials are cut.
One integrated chain, not disconnected handovers. Design, detailing, fabrication, inspection, packing and delivery follow-up run in one coordinated flow—reducing the mismatches that cause delays and cost overruns.
We stay available after shipment. Installation support and technical consultation continue until your facility is operational, not just until the container leaves the port.
Many suppliers can quote a price. What we offer is a predprojects, giving us stronger practical capability in international project delivery and on-site cooperation.
Q：

What products do we supply?

A：
We supply a wide range of prefabricated steel structures—from industrial facilities to infrastructure and specialized buildings:
Industrial buildings — workshops, warehouses and general industrial structures
Infrastructure — bridges, Bailey bridges and grid (space-frame) structures
Specialized buildings — villas, cold storage facilities and livestock buildings
Custom steel components — fabricated to your drawings for project-specific needs
Quality, manufacturing accuracy and delivery reliability are at the core of everything we ship. With our own factory and professional engineering team, we provide project-based custom solutions tailored to your drawings, technical requirements, application scenarios and site conditions—so the final structure fits the real project, not just the spec sheet.
Q：

How can we ensure quality?

A：
Quality is engineered into the process—not inspected into the product at the end.
Certified manufacturing — components are produced in our ISO 9001-certified facilities under controlled processes, with precision tooling and trained fabrication teams
Multi-stage inspection — quality checks run at every critical point: incoming materials, cutting and drilling, welding, surface treatment and final assembly
Dimensional verification — key dimensions are checked against approved shop drawings before packing, so what ships matches what was confirmed
Traceable documentation — material certificates, inspection records and packing lists accompany every shipment, giving you a clear paper trail from factory to site
For overseas projects, we add one more layer: drawings and production are aligned before fabrication begins, so quality issues are prevented at the design stage rather than discovered after shipment.
Q：

Who are we?

A：
We are a steel structure manufacturer and engineering partner built for overseas projects.
At our core:
A factory we own — multiple production lines in ISO 9001-certified facilities, giving us direct control over fabrication quality, scheduling and packing
An in-house engineering team — experienced in structural design, detailing and drawing coordination, working with tools including PKPM, 3D3S, Midas, SAP2000 and Tekla
An integrated service chain — from design and detailing to fabrication, inspection, export packing and delivery follow-up, managed as one coordinated flow rather than disconnected handovers
Global project experience — we serve industrial, agricultural and offshore clients across markets, and treat remote ordering, long-distance shipping and on-site assembly as our normal working mode
Put simply: we are the kind of supplier overseas buyers can rely on to communicate clearly, manufacture consistently and deliver as agreed—from the first drawing to the final bolt.
