XYSS Full Roofing Walls Windows and Doors Customized Set Steel Structures Warehouse and Buildings

The Art and Science of Steel Structural Warehouse and Workshops: Design Diversity and Practical Wisdom
Introduction: The Framework of Modern Civilization
Steel structural frames form the literal and metaphorical backbone of contemporary architecture and infrastructure. From soaring
skyscrapers to innovative public structures, steel's unique combination of strength, versatility, and adaptability has enabled
engineers to transform ambitious visions into built reality. This article synthesizes decades of global experience with steel
framing, examining both established and emerging design philosophies that continue to push the boundaries of what's structurally
possible.

----------------------------------------------------------------------------------------------------------------------------------
XYSS Full Roofing Walls Windows and Doors Customized Set Steel Structures Warehouse and Buildings
1. Structural Systems: Tailoring Frameworks to Function
The choice of structural system fundamentally dictates a building's behavior under loads. Modern engineering offers multiple
sophisticated approaches:
* Moment-Resisting Frames:
  Characterized by rigid beam-column connections that resist rotation, these frames leverage inherent continuity to transfer both
  gravity and lateral loads. Ideal for medium-rise buildings requiring flexible floor plans, their performance depends heavily on
  connection design. Beijing's 91m-tall Changfu Palace Hotel (1987) exemplifies this system, achieving a 1/337 maximum drift
  ratio despite its slender profile. Notably, its designers deliberately chose this over a stiffer braced-frame alternative to
  prioritize construction simplicity 8.

* Braced Frames:
  Introducing diagonal members transforms structural efficiency:
   * Concentric Braces: Direct load paths handle high seismic forces economically but risk buckling under extreme loading.
     Optimal for industrial facilities where ductility isn't primary 2.

   * Eccentric Braces: Deliberately offset links act as ductile "fuses" that yield first during earthquakes, protecting primary
     members. The calculated deformation in the beam segment (α) dissipates energy, making this system a gold standard in
     high-seismic regions 2.

   * Off-Center Braces: An innovative variant where crossed braces intentionally miss alignment, creating a controlled softening
     effect that reduces seismic input forces—ideal for open ground floors in retail or lobby spaces 2.



* Hybrid Systems:
  Combining frames with shear walls or cores offers balanced solutions. Shanghai Tower (632m) utilizes a mega-frame with
  outriggers—steel-concrete composite supercolumns and belt trusses work with its core to resist complex wind vortices,
  demonstrating how hybridity enables record-breaking heights 8.


Table: Steel Frame System Selection Guide
System TypeMax Practical HeightLateral Drift ControlIdeal ApplicationsMoment Frame30 storiesModerateOffices, Hospitals
Concentrically Braced40 storiesHighIndustrial, Data CentersEccentrically Braced50 storiesExceptionalHigh-Rise, Seismic ZonesHybrid
(Core + Frame)100+ storiesUltra-HighSuper-Tall Buildings

----------------------------------------------------------------------------------------------------------------------------------

2. Iconic Case Studies: Lessons from Pioneering Projects
A. The "Apple Bike Shed" – Netherlands (2010)
This whimsical yet structurally sophisticated bicycle pavilion demonstrates how parametric design enables complex geometries:
* Spiral Framework: Five ascending helical beams create a self-stabilizing shell, carrying 60% of vertical loads through axial
  action.

* Innovative Node Design: Custom bolted connections (not welded) balanced Dutch labor costs. Though specified to prevent nesting,
  birds still colonized cavities—a lesson in designing for all environmental interactions 1.

* Software Synergy: SCIA Engineer handled primary FEA, while Tekla’s automated detailing won awards—proving digital integration’s
  value in fabricating irregular components 1.


B. Double-Bay Portal Frames – Industrial Breakthrough
Cold-formed steel portal frames evolved dramatically with multi-bay configurations:
* Slender Internal Columns: Under symmetrical gravity loads, internal columns experience near-zero moment, enabling leaner
  designs. Under wind, however, stiff external bays carry 80%+ of lateral forces, revealing why internal joints demand
  specialized detailing like ECT-1/2 configurations 4.

* Cost Efficiency: One internal column serves two bays, reducing foundations/connections. A 30m x 100m warehouse saved 19% in
  steel tonnage versus twin single-bay frames 4.


----------------------------------------------------------------------------------------------------------------------------------

3. Connection Design: Where Theory Meets Reality
Joints dictate structural integrity more than any member. Advances address seismic and fabrication challenges:
* Traditional Methods:
   * Bolted Splices: Allow field adjustments but require strict slip-control.

   * Welded Joints: Offer continuity but risk brittle fractures if procedures lapse.



* Seismic Innovations:
  Corrugated steel-plate composite joints (2023 research) achieved 0.206 damping ratios and 3.67 ductility factors by forcing
  plastic hinges into beams—validating "strong joint, weak member" principles 7.

* Automated Nodes: The Apple project’s macros for Tekla standardized 5,000+ unique bolt patterns—slashing detailing time by 70% 1
  .


Table: Connection Performance Comparison
Connection TypeStrength EfficiencyConstruction SpeedSeismic SuitabilityConventional Welding95%SlowModerateHigh-Strength Bolting85%
FastGoodCorrugated Composite110%*MediumExcellentRelative to member yield capacity

----------------------------------------------------------------------------------------------------------------------------------
XYSS Full Roofing Walls Windows and Doors Customized Set Steel Structures Warehouse and Buildings
4. Emerging Frontiers: Lightweight & Sustainable Systems
A. Light Steel Framing (LSF)
Cold-formed sections (C≤4mm) now dominate low/mid-rise construction:
* Speed & Precision: Pre-punched studs/services reduce build times 40% versus concrete 10.

* Sustainability: 100% recyclable frames with infill insulation achieve Passive House standards.

* Gilan Province Project: Post-earthquake reconstruction in Iran used LSF for its 1/3 weight of masonry, slashing foundation
costs in poor soils 10.

B. Robotic Fabrication & AI
* Algorithmic optimization now minimizes steel tonnage in complex nodes by 15–25%.

* Automated welding cells ensure consistent quality where manual skill gaps exist.

----------------------------------------------------------------------------------------------------------------------------------

5. The Art of Anticipating Real-World Behavior
Beyond codes, expert intuition avoids pitfalls:
* Bird Nests as Load Cases: The Apple’s hollow members unexpectedly hosted birds—prompting future designs to incorporate pest
barriers 1.

* Foundation Economics: LSF’s 60% lighter frames enable cheaper rafts in weak soils—a hidden savings often overlooked.

* Maintenance Access: Shanghai Tower’s inspectable dampers exemplify designing for whole-life usability.

----------------------------------------------------------------------------------------------------------------------------------

Conclusion: The Future Frame
Steel structures continue evolving through symbiotic advances in materials science, computational design, and constructional
pragmatism. As trends like automated light-gauge systems and performance-based seismic design gain momentum, engineers must
balance innovation with lessons etched into past structures—sometimes literally, by nesting birds. The next era will prioritize
not just strength and efficiency, but resilience, adaptability, and circularity, ensuring steel remains humanity’s most versatile
building companion.
XYSS Full Roofing Walls Windows and Doors Customized Set Steel Structures Warehouse and Buildings

Specification

item

value

Tolerance±5%
StandardASTM
Place of OriginChina

Shandong
Delivery Time7-35 days
Gradehot rolled galvanized steel
Brand NameTaiSin
Model NumberPF-FT/MTR
TypeHeavy
ApplicationSteel Workshop
Processing ServiceWelding
Product nameSteel Structure Building
PurlinC.Z Shape Steel Channel
Main frameSolid H-shape Steel Beam
Application FieldsSteel Structure Workshop Warehouse Hangar House
KeywordSteel Structural Steel Frame Workshop
Surface treatmentHot Dip Gavalnized & Paint
RoofingSandwich Panel. Single Steel Sheet
MaterialQ235B/Q345B Low Carbon Steel
ColorCustomized Color
CertificateCE Certification

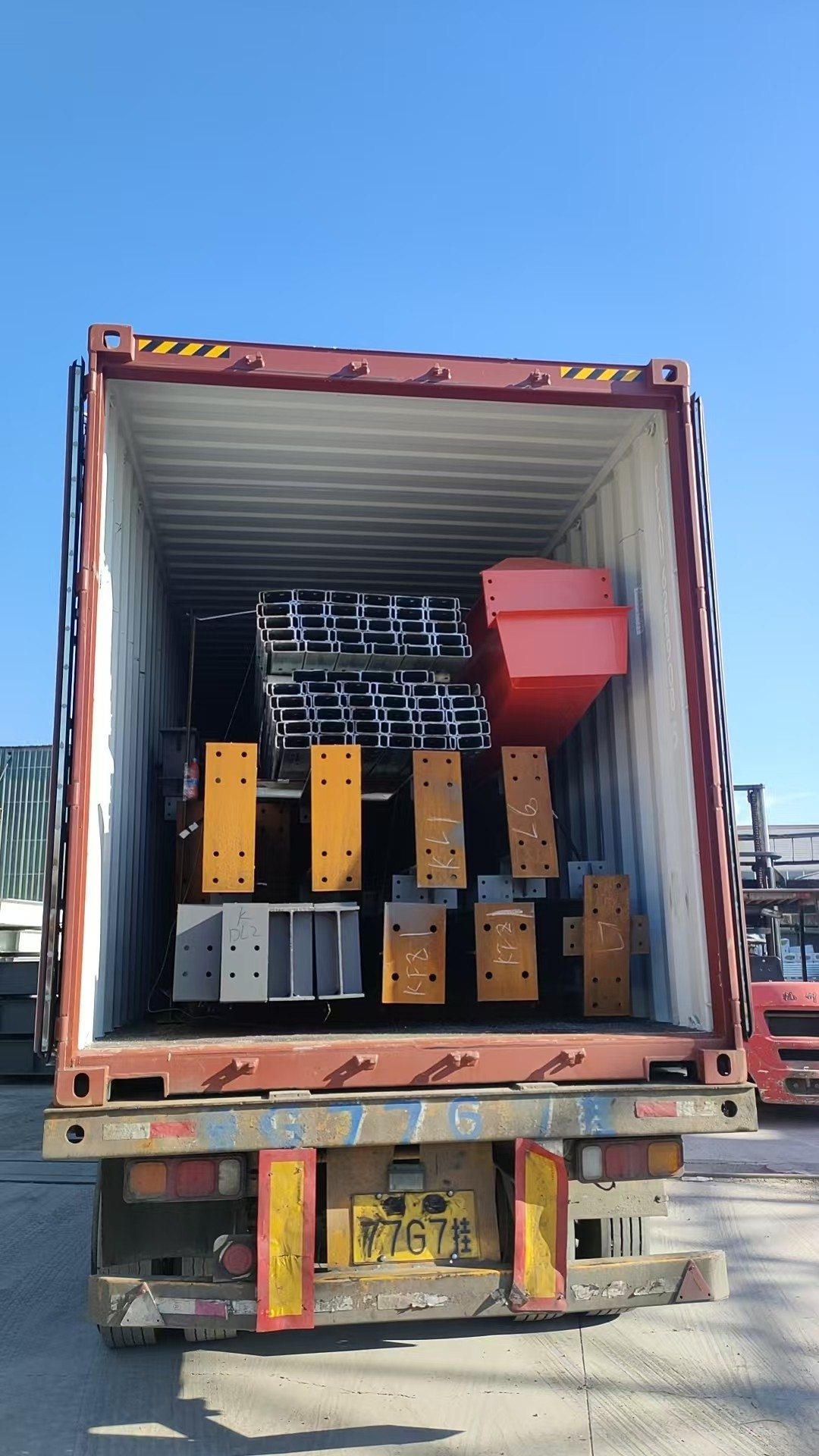

Packing & Delivery
XYSS Full Roofing Walls Windows and Doors Customized Set Steel Structures Warehouse and Buildings
XYSS Full Roofing Walls Windows and Doors Customized Set Steel Structures Warehouse and Buildings
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
XYSS Full Roofing Walls Windows and Doors Customized Set Steel Structures Warehouse and Buildings
XYSS Full Roofing Walls Windows and Doors Customized Set Steel Structures Warehouse and Buildings
XYSS Full Roofing Walls Windows and Doors Customized Set Steel Structures Warehouse and Buildings
We leverage over 20 years  of proven experience delivering top-tier steel structures globally. Our core strengths include: High-Capacity Production:Operating expansive, modern facilities equipped with cutting-edge fabrication machinery (CNC cutting, automated welding, hydraulic presses), enabling efficient large-scale production of thousands of tons annually and handling complex, sizable projects. Superior Craftsmanship & Quality: Expertise in advanced manufacturing methods and stringent processes ensures exceptional precision engineering, quality craftsmanship, and structural integrity. Our commitment is reinforced by rigorous multi-stage QC (ISO-certified systems) and highly skilled technicians holding relevant welding certifications. Proven Expertise: Decades of successfully executing diverse projects across [mention sectors if possible, e.g., industrial, commercial, infrastructure] equip us with deep practical knowledge and reliable solutions for any structural challenge, consistently meeting demanding specifications and timelines. End-to-End Capability:  Offering comprehensive services from detailed design collaboration and engineering support through precise fabrication to efficient logistics and on-site installation management. This powerful combination of scale, advanced technology, skilled workmanship, and extensive experience establishes us as a highly capable and trusted partner for demanding steel construction needs.
XYSS Full Roofing Walls Windows and Doors Customized Set Steel Structures Warehouse and Buildings

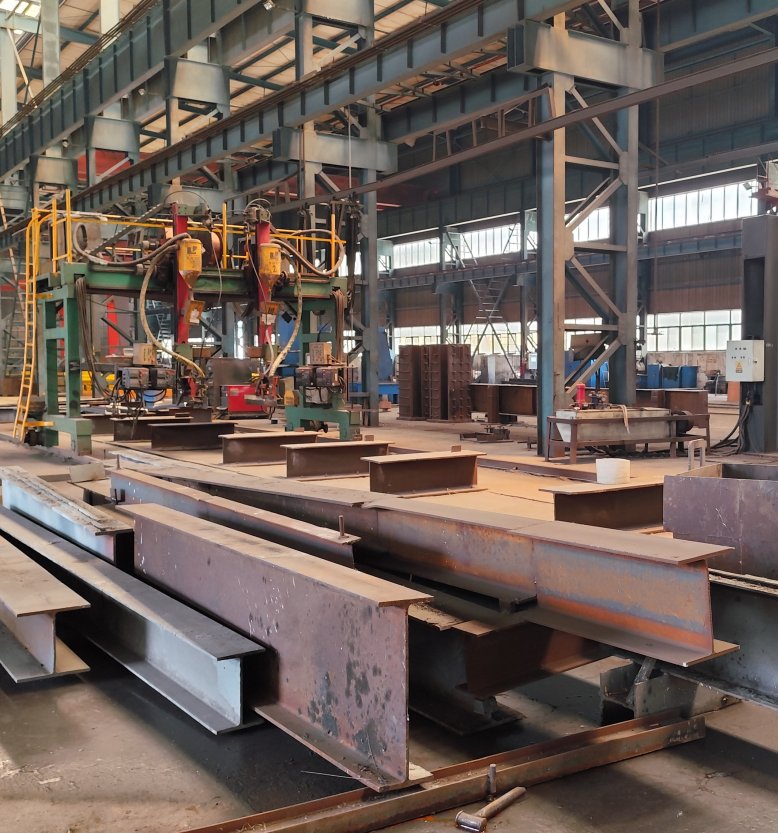

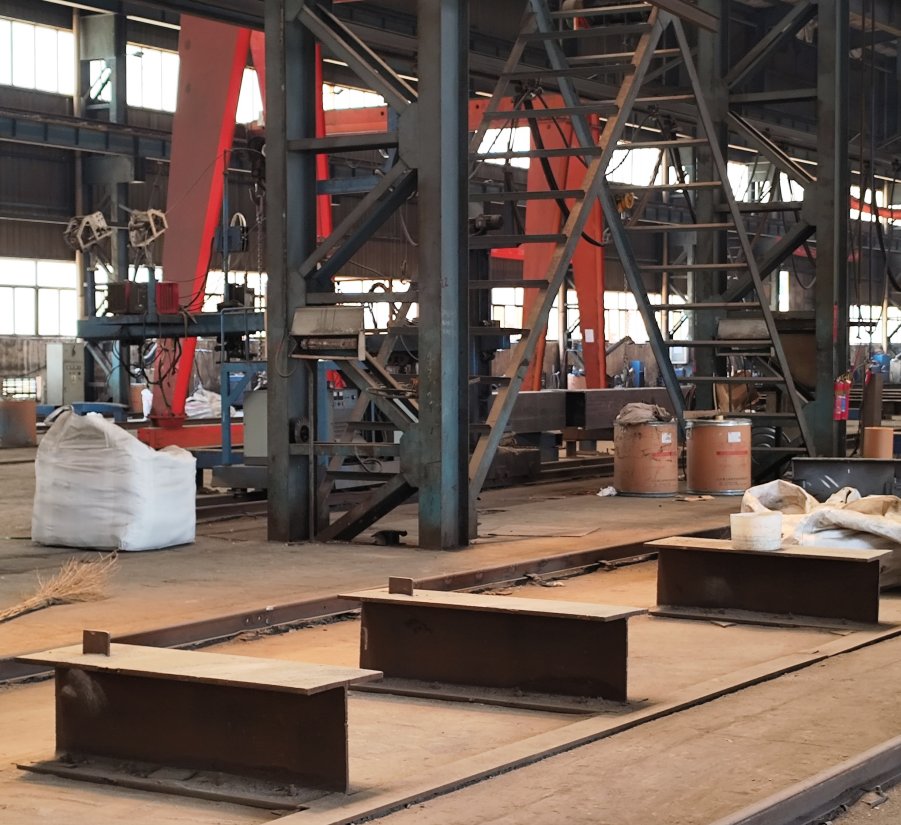

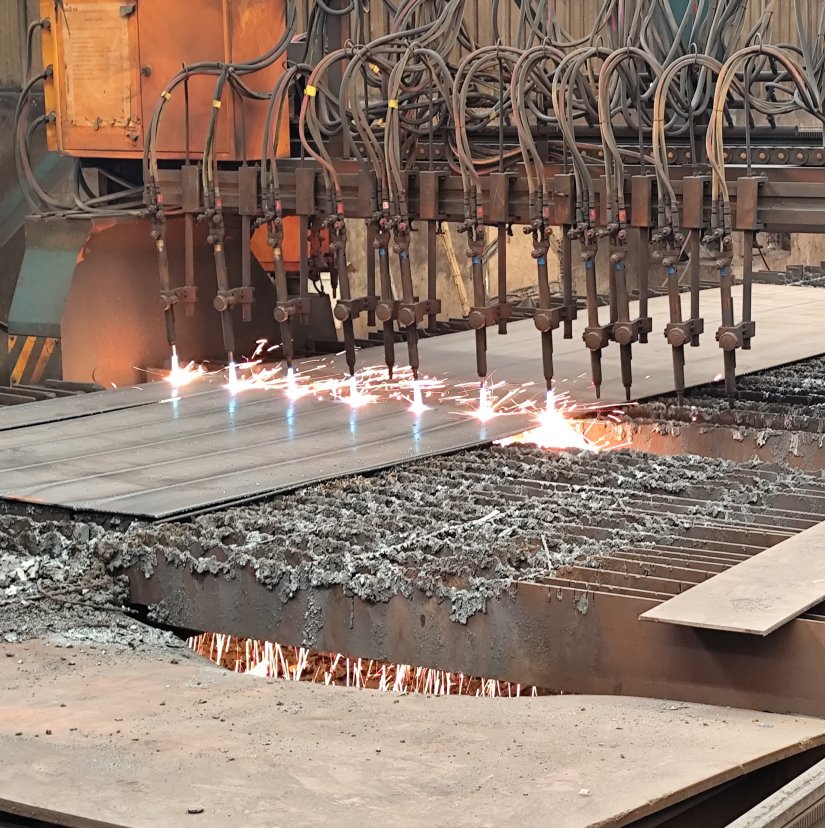

Factory Display

  • 05
  • 06
  • 07
  • 6
  • 5
  • 4
  • 3
  • 2
  • 1
  • 7

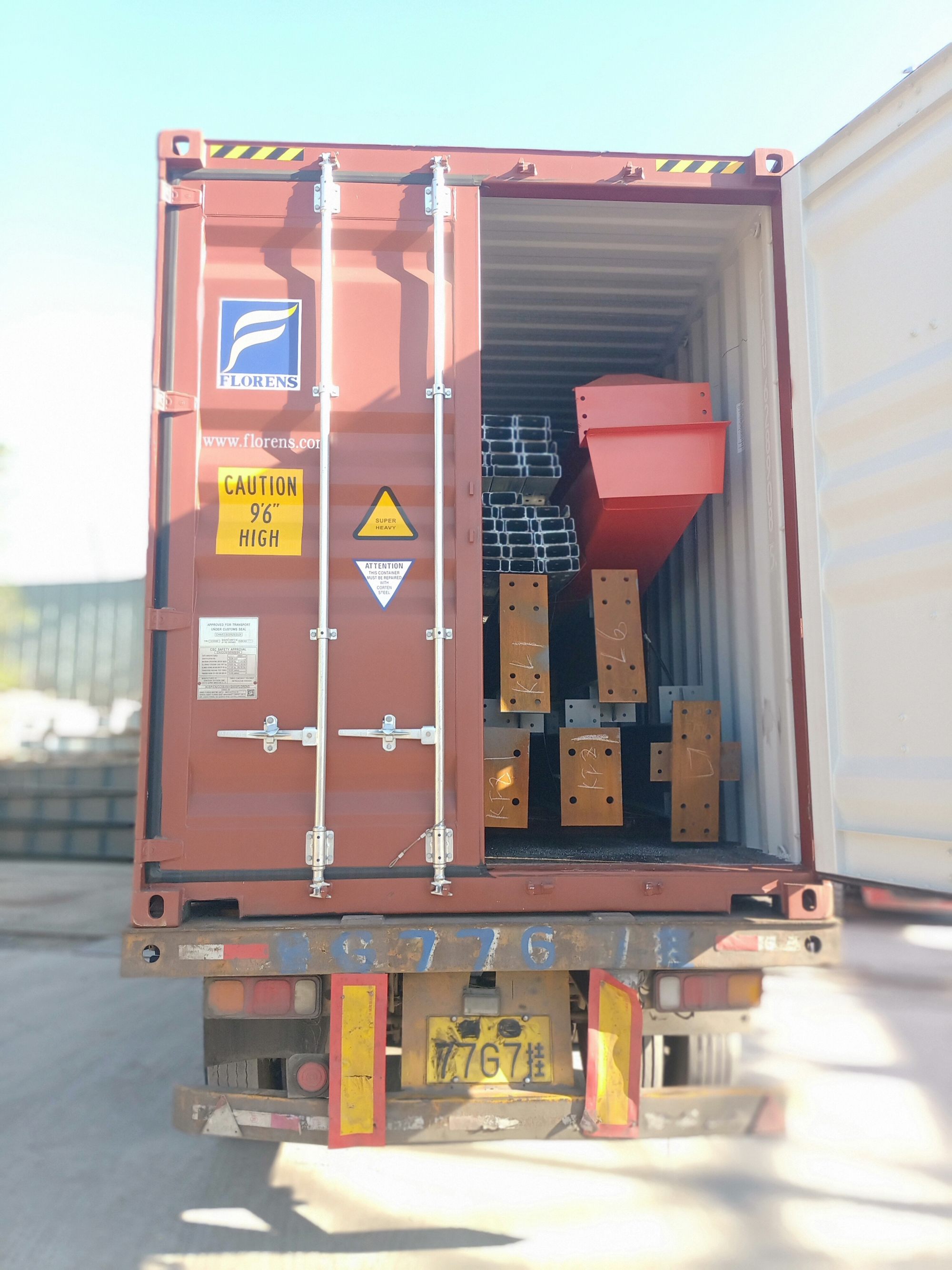

Packing & Delivery

  • H737982c83cbc4a3f8e6906b878ebb229N
  • H62e7887630294d119fc2199937396643A
  • Hb4dac970519247c98f0e8159444a0b864
  • Hb94675af5325432e9f41c1544074f61ce
  • H8abe21a2bf8c46cbb4ccc0681534a703a
  • H3b722173c2e34ddfa9ba14e9aabe26eaU

FAQ

Q:

What one-stop services and technical support can we provide for overseas steel structure projects?

A:
We cover the entire project chain—from drawing to delivery.
For overseas steel structure projects, our one-stop services include:
Design & engineering — structural optimization, detailing and drawing confirmation tailored to local codes and site conditions
Fabrication — precision manufacturing in ISO 9001-certified facilities, with strict quality inspection at every stage
Export packing & logistics — seaworthy packing, clear documentation and coordinated shipping for long-distance delivery
On-site support — installation guidance, bolted-assembly documentation and responsive technical consultation until your project is operational
Technical support runs throughout: we confirm design details before fabrication, align drawings with production, and stay available after delivery—so every unclear point is resolved before it becomes a problem on site.
Q:

Why choose us rather than other suppliers?

A:
Because we solve the problem most suppliers ignore—the gap between what is promised and what is delivered.
We are built for overseas projects. Remote ordering, long-distance shipping and on-site assembly are our normal working mode—not exceptions we improvise around.
Engineering comes before fabrication. We confirm loads, layout, lifting logic and interfaces in the design stage, so problems are solved on paper, not after materials are cut.
One integrated chain, not disconnected handovers. Design, detailing, fabrication, inspection, packing and delivery follow-up run in one coordinated flow—reducing the mismatches that cause delays and cost overruns.
We stay available after shipment. Installation support and technical consultation continue until your facility is operational, not just until the container leaves the port.
Many suppliers can quote a price. What we offer is a predprojects, giving us stronger practical capability in international project delivery and on-site cooperation.
Q:

What products do we supply?

A:
We supply a wide range of prefabricated steel structures—from industrial facilities to infrastructure and specialized buildings:
Industrial buildings — workshops, warehouses and general industrial structures
Infrastructure — bridges, Bailey bridges and grid (space-frame) structures
Specialized buildings — villas, cold storage facilities and livestock buildings
Custom steel components — fabricated to your drawings for project-specific needs
Quality, manufacturing accuracy and delivery reliability are at the core of everything we ship. With our own factory and professional engineering team, we provide project-based custom solutions tailored to your drawings, technical requirements, application scenarios and site conditions—so the final structure fits the real project, not just the spec sheet.
Q:

How can we ensure quality?

A:
Quality is engineered into the process—not inspected into the product at the end.
Certified manufacturing — components are produced in our ISO 9001-certified facilities under controlled processes, with precision tooling and trained fabrication teams
Multi-stage inspection — quality checks run at every critical point: incoming materials, cutting and drilling, welding, surface treatment and final assembly
Dimensional verification — key dimensions are checked against approved shop drawings before packing, so what ships matches what was confirmed
Traceable documentation — material certificates, inspection records and packing lists accompany every shipment, giving you a clear paper trail from factory to site
For overseas projects, we add one more layer: drawings and production are aligned before fabrication begins, so quality issues are prevented at the design stage rather than discovered after shipment.
Q:

Who are we?

A:
We are a steel structure manufacturer and engineering partner built for overseas projects.
At our core:
A factory we own — multiple production lines in ISO 9001-certified facilities, giving us direct control over fabrication quality, scheduling and packing
An in-house engineering team — experienced in structural design, detailing and drawing coordination, working with tools including PKPM, 3D3S, Midas, SAP2000 and Tekla
An integrated service chain — from design and detailing to fabrication, inspection, export packing and delivery follow-up, managed as one coordinated flow rather than disconnected handovers
Global project experience — we serve industrial, agricultural and offshore clients across markets, and treat remote ordering, long-distance shipping and on-site assembly as our normal working mode
Put simply: we are the kind of supplier overseas buyers can rely on to communicate clearly, manufacture consistently and deliver as agreed—from the first drawing to the final bolt.
